Written by Ana Rosales
In the world of structural engineering, making modifications to building’s exteriors demands careful planning and execution to uphold structural integrity and safety. We will explore the essential considerations and methodologies involved in opening modifications, emphasizing the importance of proper design and material selection.
Structural Analysis
Before undertaking any opening modification project, a thorough structural analysis is imperative to assess the impact on the building’s stability. Engineers evaluate whether the wall containing the opening contributes to the lateral load system of the building and take measures to redistribute the load if necessary.
Additionally, engineers address vulnerabilities to out-of-plane loads, such as those from winds and hurricanes, by designing appropriate anchorage systems and reinforcing the header, sill and jambs of the window against wind loads.
Calculation and design process
In the calculation and design process, engineers first evaluate the load-bearing capacity of the existing wall and assess the potential effects of removing material for the opening.
Load Transfer and Support
Based on the analysis, engineers identify the loads carried by the section of wall to be removed and design structural supports, like lintels or headers, to distribute these loads to adjacent elements. Reinforcement measures may also be recommended to ensure stability.
Anchorage and Connection
Engineers evaluate anchorage requirements for the window or door frame, considering factors like wind and seismic forces. They select appropriate anchorage devices and develop connection details to integrate the frame with the surrounding wall elements.
Design Documentation

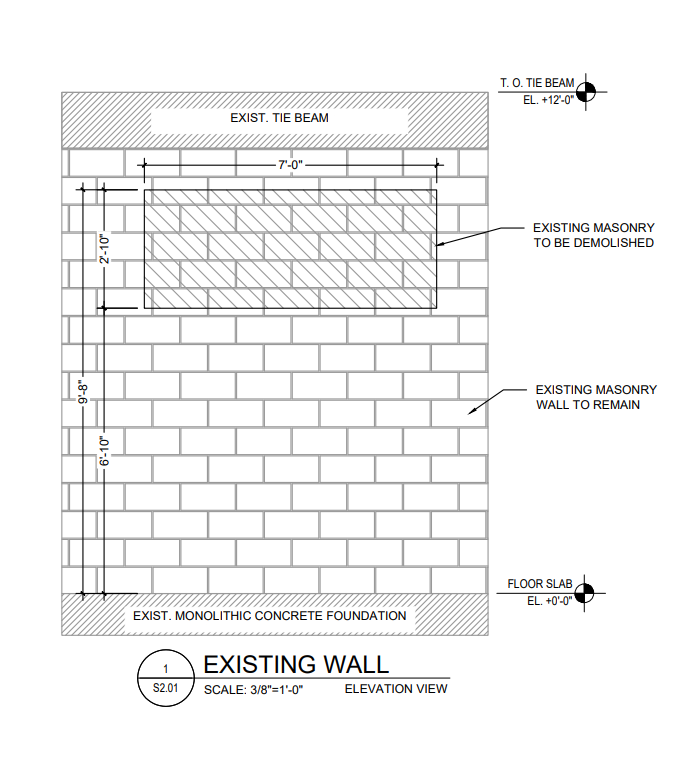

Finally, it is necessary to prepare detailed drawings and specifications, to outline the proposed modifications, including dimensions, materials, and construction details. Structural calculations and load transfer analyses are documented to ensure compliance with building codes and safety standards.
Material Considerations
Opening modifications can utilize various materials, each with its unique properties and challenges. Common materials include wood, light-gauge steel, and blocks, each offering distinct advantages and considerations in terms of structural stability, durability, and installation feasibility.
Wood
Wood is a traditional and versatile material commonly used in opening modifications due to its abundance, ease of fabrication, and aesthetic appeal. However, engineers must carefully consider wood’s susceptibility to moisture, rot, and insect damage, especially in humid or coastal regions. Proper treatment and sealing are necessary to enhance durability and longevity.

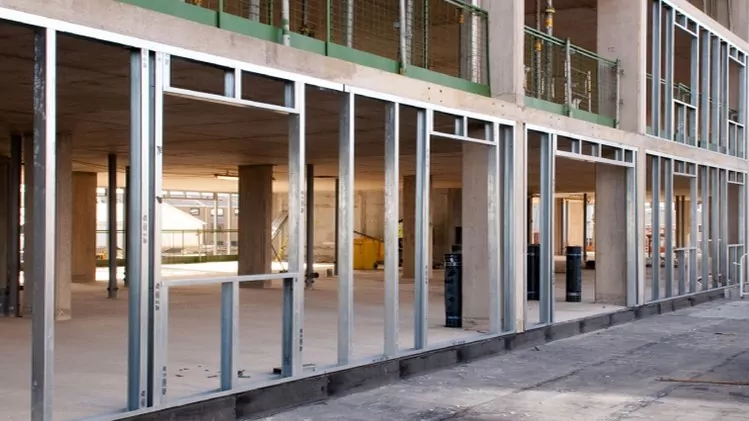

Light-Gauge Steel
Light-gauge steel offers exceptional strength-to-weight ratio and dimensional stability, making it an ideal choice for opening modifications where structural integrity and load-bearing capacity are crucial. Unlike wood, steel is resistant to moisture, fire, and pests, offering superior durability and longevity. Additionally, steel’s inherent flexibility allows for precise customization and intricate designs, enabling engineers to achieve complex opening configurations with minimal material waste.
Blocks
Concrete blocks offer robust structural support and thermal mass, ideal for opening modifications in high-load and high-traffic areas. They boast excellent compressive strength and durability, making them perfect for supporting heavy loads and resisting impacts. However, concrete blocks require skilled craftsmanship and meticulous installation to ensure proper alignment and load distribution.
In summary, opening modifications in structural engineering demand meticulous planning, precise execution, and adherence to established standards and best practices. By prioritizing structural analysis, mitigating out-of-plane loads, and selecting appropriate materials, engineers can ensure the integrity and safety of building openings while enhancing the overall functionality and aesthetic appeal of structures.
